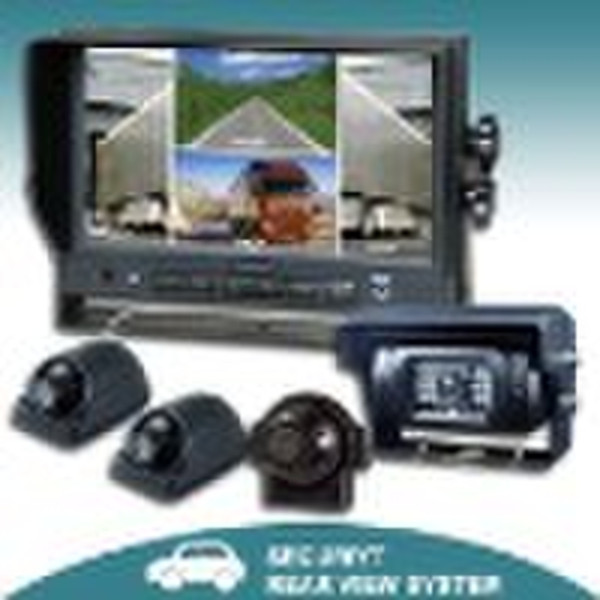

Quad view color car rear view system

Quad view color car rear view system: Features of car rear view monitor (MO-127M) 1. 7 Inch color LCD monitor with built-in quad. 2. Single, dual , triple , quad image and PIP functions available. 3. Four camera inputs, power output from the monitor being 4X300mA. 4. One DVD AV input and two video outputs. 5. The display effect, volume and mirror function for each camera can be separately set up. 6. The priority of quad picture and dual picture can be set up. 7. With trigger wire for dual picture, the relative cameras can be combined optionally. 8. Camera's name can be set up: 8 characters the longest. 9. The boot-strap display can be set as your perfect display mode. 10. Four trigger wires for cameras. 11. Once a trigger wire is activated, image automatically switches to its relative camera. 12. Auto scanning and timed image switch. 13. Image of monitor auto switches to the working channel. 14. Operates from 10 32V. 15. Backup distance grid & left / right-turning indicator arrow available. 16. Applicable to both indoor / outdoor security systems and vehicle rear view systems. 17. New style, multiple functions, easy installation and convenient operation.Features of Car rear view camera (CW-635M): 1. Backup camera with auto shutter 2. Super wide angle (180° ) 3. Automatic heating when the cameras running temperature is below 10(optional) 4. Performs in rugged conditions 5. Distance label selectable to be open or closed 6. Waterproof and weather resistant housing for outdoor use 7. Night vision available, day/ night sensor for automatic adjustment 8. IR distance: approx. 10m 9. Infrared LED light: 12 10. Mirror/ Normal image switch (depending on the chips) Features of car rear view camera (CW-644) 1. Compact profile 2. Waterproof and vandalproof 3. Convenient angle adjustment 4. Infrared LED light: 5 5. IR Distance: 5 m 6. High resolution 7. Multiple colors are optional: black, green, yellow, red, silver 8. Can be mounted on rear, front, or either side of vehicles Features of car rear view camera (CS-404) 1. Compact profile 2. Waterproof and vandalproof 3. Convenient angle adjustment 4. Infrared LED light: 5 5. IR Distance: 5 m 6. High resolution 7. Multiple colors are optional: black, green, yellow, red, silver 8. Can be mounted on rear or either side of vehicles 7" COLOR TFT LCD MONITOR - MO-127M Display component : 7" TFT-LCD monitor TV System: PAL/NTSC Resolution: 1440WX234H Brightness: 350cd/ Contrast : 400:1 Input Voltage: 10V 32V Humidity: 20% 80% Ratio: 16:9 Dot pitch: 0.321(H) x 0.370(V) Viewing angle: U:45 / D:65,R/L : 65 Operating Temperature:10 +65 Storage Temperature: -30 +80 Video input : Four cameras video input, Peak: 1Vp-p, Impedance: 75Ω One DVD VIN video input, Peak: 1Vp-p, Impedance: 75Ω Audio input : Four cameras audio input, Peak:1Vp-p, Impedance: 4.7KΩ One DVD VIN audio input , Peak:1Vp-p, Impedance: 4.7KΩ Video output :One REC VOUT output, Peak: 1Vp-p, Impedance: 75Ω One LIVE VOUT output, Peak:1Vp-p, Impedance: 75Ω Audio output: : One REC audio output, Peak:1Vp-p, Impedance: 4.7KΩ ◊Rear Panel : ◊Connection Diagram: ◊Dimensions ◊Electronic label
